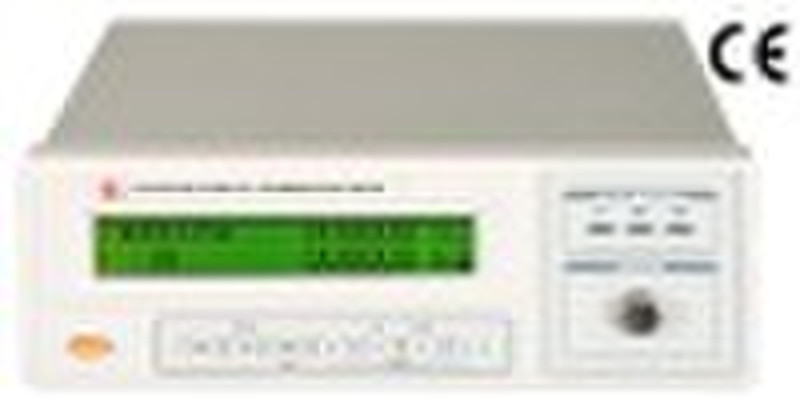

Programmable DC LOW-Ohm Tester

Apply to motor transformer, inductance coil, relay contact resistance, switching connector resistance, wire resistance, component weld contact resistance, PCB line and weld hole resistance, metal damage, etc LCD display, menu-guided operation Simple operation with data logging Accuracy, up to 0.05% Minimum resolution,up to 1μΩ Wide test range1μΩ-2MΩ Up-limit and low-limit and qualification with audible alarm Model CS2512CS2512ACS2512BTest accuracy 0.05%+2counts0.1+2counts0.1+2countsDisplay range 0.001mΩ-1.9999MΩ0.01mΩ-199.99kΩ0.001mΩ-19.999MΩTest current 1A,100mA,10mA,1mA, 100μA,10μA,1μA100mA,10mA,1mA,100μA,10μA1A,100mA,10mA,1mA,100μATest range 20mΩ,200mΩ,2Ω,20Ω, 200Ω,2kΩ,20kΩ,200kΩ,2MΩ200mΩ,2Ω,20Ω, 200Ω,2kΩ,20kΩ,200kΩ20mΩ,200mΩ,2Ω, 20Ω,200Ω,2kΩ,20kΩresolution 1μΩ,10μΩ,100μΩ,1mΩ, 10mΩ,100mΩ,1Ω,10Ω,100Ω,10μΩ,100μΩ,1mΩ, 10mΩ,100mΩ,1Ω,10Ω1μΩ,10μΩ,100μΩ, 1mΩ,10mΩ,100mΩ,1ΩTest speed fast 10/s slow 2.5/sTest mode manual automaticCommunication interface RS232C\PLC\Counter\Double channel are standardIEEE488 interface\GPIB interface\ POWER AMPLIFIER and so on is optionalDimension width×height×length=285mm×95mm×340mmWeight (about) 4kg
