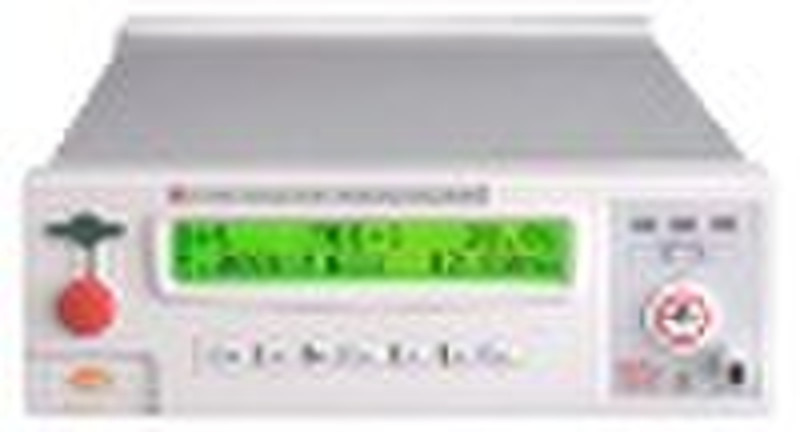

Programmable Hipot Tester
truda mao
Contact person
Basic Information
| Power | Electronic |
|---|---|
| Usage | Auto Testing Machine |
| Place of Origin | Jiangsu China (Mainland) |
| Brand Name | Allwin |
| Model Number | CS9911BI |
Electric safety wall detecting function Voltage rises as time, seeking for the breakdown points Voltage falls as time, preventing reverse overshoot Over-zero start prevents the damages for DUT Test mode programmable Voltage rise, voltage fall, test and dwell time programmable Current Low-limit and up-limit programmable Maximum power output can be up to 500VA Can set offset value LCD display with menu-guided operation Arc detection (set up as current) Accuracy:1%, the highest within the industry Support 50Hz and 60Hz frequency Output voltage changeable manually during the testing 20 memory groups, 8 steps per group Standard PLC interface, optional ports: RS232, RS485 Model Output voltage Accuracy Test Current Accuracy CS9911BI (0.050-5.000) kV (AC) (1%+5V) (0.001-12) mA (AC) (2%+2counts) (0.050-6.000) kV (DC) (0.001-5) mA (DC) Test time Frequency Arc detection (0-999.9) s50Hz / 60Hz 0-12mA(AC)
Delivery terms and packaging
Port: shanghai
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
