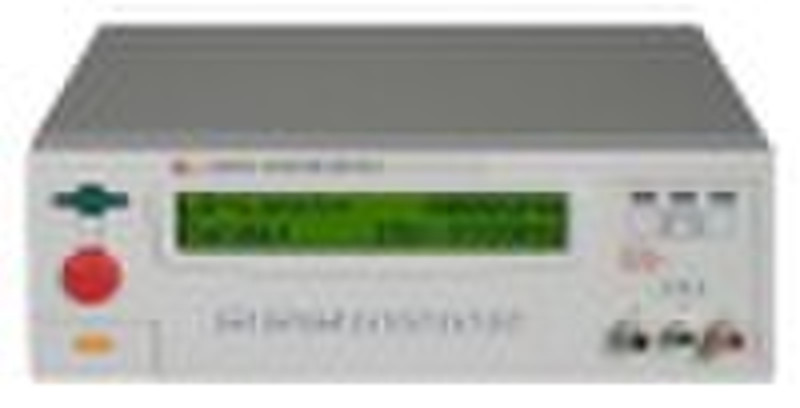

Programmable Insulation Resistance Tester

This series testers offer a variety of features that simplify measuring high resistance and the resistivity of insulating materials. They are well suited for low current and high impedance voltage, resistance, and charge measurements in areas of research such as physics, optics, and materials science. Its extremely low voltage burden makes it particularly appropriate for use in solar cell applications, and its built-in voltage source and low current sensitivity make it an polymer based nanowires. Its high speed and ease-of-use also make it an excellent choice for quality control, product engineering, and production test applications involving leakage, breakdown, and resistance testing. Volume and surface resistivity measurements on non-conductive materials are particularly enhanced by the series of programmable insulation resistance testers Time, Voltage, Current, Resistance display by select 20Memories,Resistance upper&lower limit set and auto alarm Dielectric Absorptance Ratio&polarization index auto-test Range mode: Automated and manual Ramp time,Dwell time,Pause time can arbitrary set Max Resistance Range:10Tohm ,100Tohm Low-Voltage test Hi-Resistance: 1V test 10Gohm Min Current Range: 0.1nA Rapid discharge quick when test end Interface: Handler RS232C, RS485, Supply PLC port Voltage Range: 1.0V-100.0V ±(2%+5counts) 100V-1000V ±(2%+5counts) Resistance Range: 100.0k ohm-1T ohm, 10T ohm, 100T ohm Dwell up time: 0-999.9s Measurement Speed: 3 meas /sec Insulation Resistance Basic Accuracy: ±5% ModelCS2676CCS2676C-1CS2676C-2Voltage range(100 1000)V ±2%(50 1000)V ±2%(20 1000)V ±2%Resistance range(1 10000)MΩ(1 50000)MΩ1MΩ 100GΩTest time999.9s999.9s999.9saccuracy±5%±5%±5%
