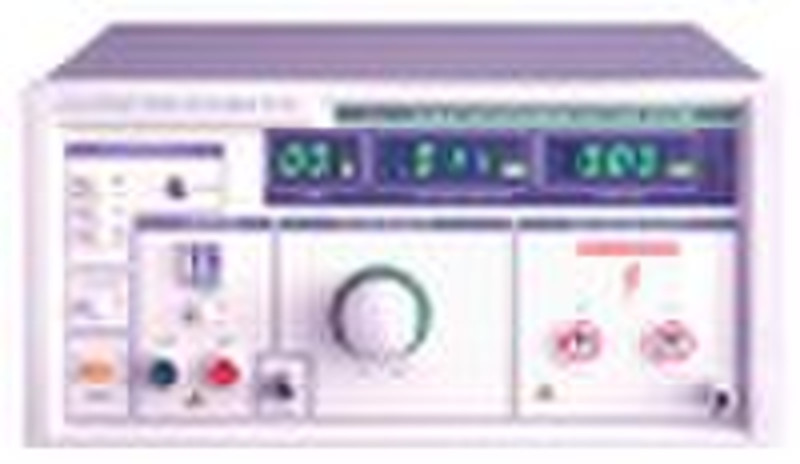

Withstanding voltage tester

High voltage, low current, accuracy measuring Continuous setup of leakage current and test time, good adaptability Display tested real values simultaneously (time, voltage, current), and audible and visual alarm with disqualification Hi-pot breakdown protection The instrument can serve several purpose, for example, output current of DC port can realize the test of withstanding voltage and leakage current of capacitor, reverse voltage and reverse leakage current of high-voltage silicon stack and transistor, etc Model Output voltage(kV)Output current(mA)Test time(s)Transformer capacityaccuracy CS2672B (0-5)(AC) (0-100)(AC) (1-99)500VA ±(3%+3counts) CS2672C (0-5)(AC/DC) (0-100/20)(AC/DC) (1-99)500VA ±(3%+3counts) Dimension width×height×length=315mm×165mm×250mm(CS2672B) width×height×length=375mm×190mm×280mm(CS2672C)Weight (about) 14kg(CS2672B) 18kg(CS2672C)
